Shen Zhen Ucard Co., Ltd

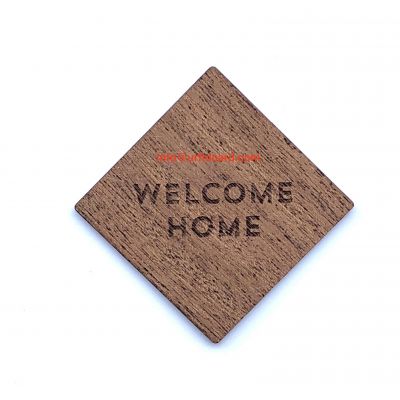

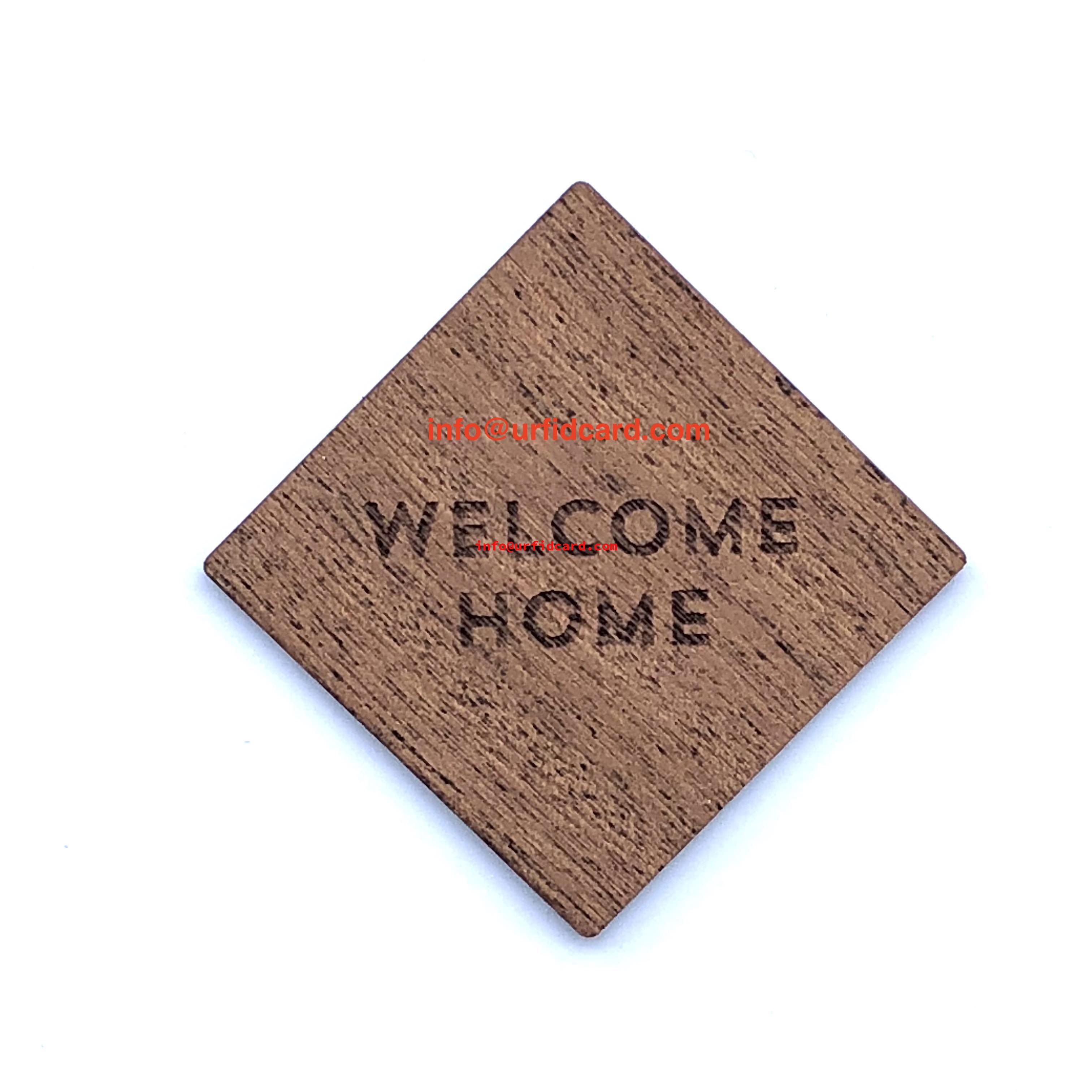

Saflok Hotel Wooden Key Cards Specifications:
Electronic Specifications:
1. Chip: MIFARE Classic® 1K
2. Fully ISO/IEC 14443 type A 1-3 compliant
3. Available with ISO/IEC 14443-3 7-byte unique identifier
4. EEPROM size(byte): 1k
5. Write endurance(typical cycles): 200 000 times
6. Organization: 16 sectors with 4 blocks
7. Data Retention: 10 years
8. Bit-rate(Kbit/s): 106
9. Unique serial number(byte): 4 byte NUID or 7 byte UID
10. 4 byte random ID: yes
11. Random number generator: yes
12. Access keys: 2 CRYPTO1 keys per sector
13. Access conditions: Per sector
14. Cryptography: CRYPTO1
15. Frequency: 13.56MHz(HF)
16. Reading distance: 3-10cm
17: NXP originality signature to prove MIFARE Classic genuineness
Physical Specifications:
1. Material: PVC/ABS/PET/PC/Paper/Wood
2. Size: CR80, (3.370 x 2.125 in), or customized size
3. Thickness: 0.80 (±0.04) mm (or 30 mil/0.030 in)
4. Finish: glossy/matte
5. Printing: CMYK offset printing, silk screen printing
6. Available options: signature panel, hole punching, barcode(QR/39/128/and others), laser engraving, UV printing, scratch off material, LoCo/HiCo magnetic stripe and more
7. Applications: Season passes, Payment, Gym/Club/Spa memberships, loyalty & Promotion, access control and security, employee Identification, Time & attendance, Library card, Parking, Ticketing, hotel room keys, Photo ID, credentials, key cards, mass transit, stored value, dining/vending, hospitality, casino
