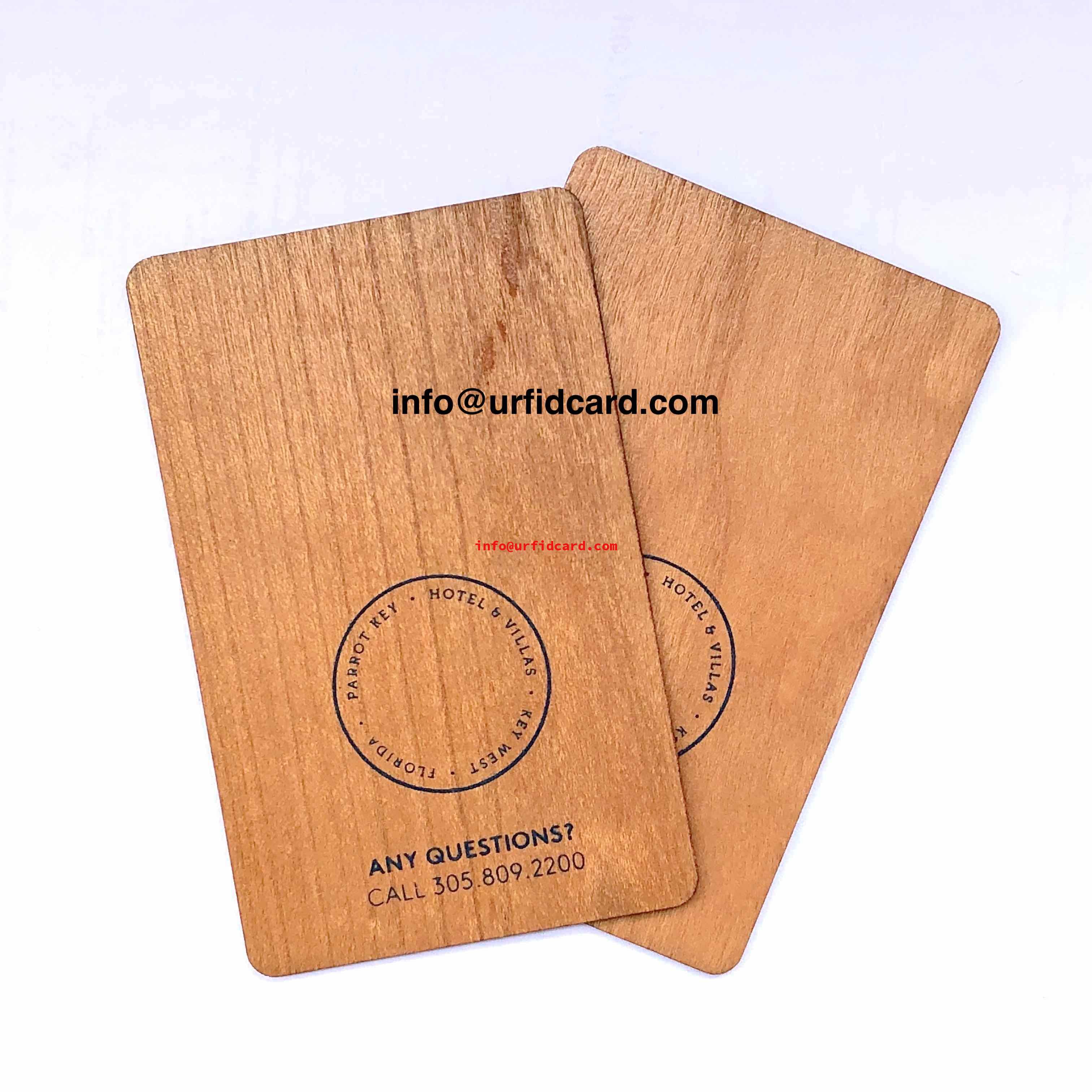

13.56MHz MIFARE® Plus S 2K RFID Smart Card
MIFARE Plus S: Upgrade MIFARE Classic installations to AES security. Reduced features compared to MIFARE Plus X to simplify system integration efforts by maintaining benchmark security needs
Electronic Specifications:
1. Chip: Mifare® Plus S 2K
2. Fully ISO/IEC 14443 type A compliant
3. Simple fixed memory structure compatible with Mifare Classic® 1K and Mifare Classic® 4K
4. EEPROM size(byte): 2k
5. Write endurance(typical cycles): 200 000 times
6. Anti-tear function for writing AES keys
7. Data Retention: 10 years
8. Bit-rate(Kbit/s): 848
9. 7-Byte Unique Identifier(UID) or 4-Byte Non Unique Identifier(NUID) and random IDs
10. Supports virtual card concept
11. Multi-sector authentication, Multi-block read and write
15. Frequency: 13.56MHz(HF)
16. Reading distance: 3-10cm
17: NXP originality signature to prove MIFARE® Plus genuineness
Physical Specifications:
1. Material: PVC/ABS/PET/PC/Paper/Wood
2. Size: CR80, (3.370 x 2.125 in), or customized size
3. Thickness: 0.80 (±0.04) mm (or 30 mil/0.030 in)
4. Finish: glossy/matte/frosted
5. Printing: CMYK offset printing, silk screen printing
6. Available options: signature panel, hole punching, barcode(QR/39/128/and others), laser engraving, UV printing, scratch off material, LoCo/HiCo magnetic stripe and more
7. Applications: Season passes, Payment, Gym/Club/Spa memberships, loyalty & Promotion, access control and security, employee Identification, Time & attendance, Library card, Parking, Ticketing, hotel room keys, Photo ID, credentials, key cards, mass transit, stored value, dining/vending, hospitality, casino
